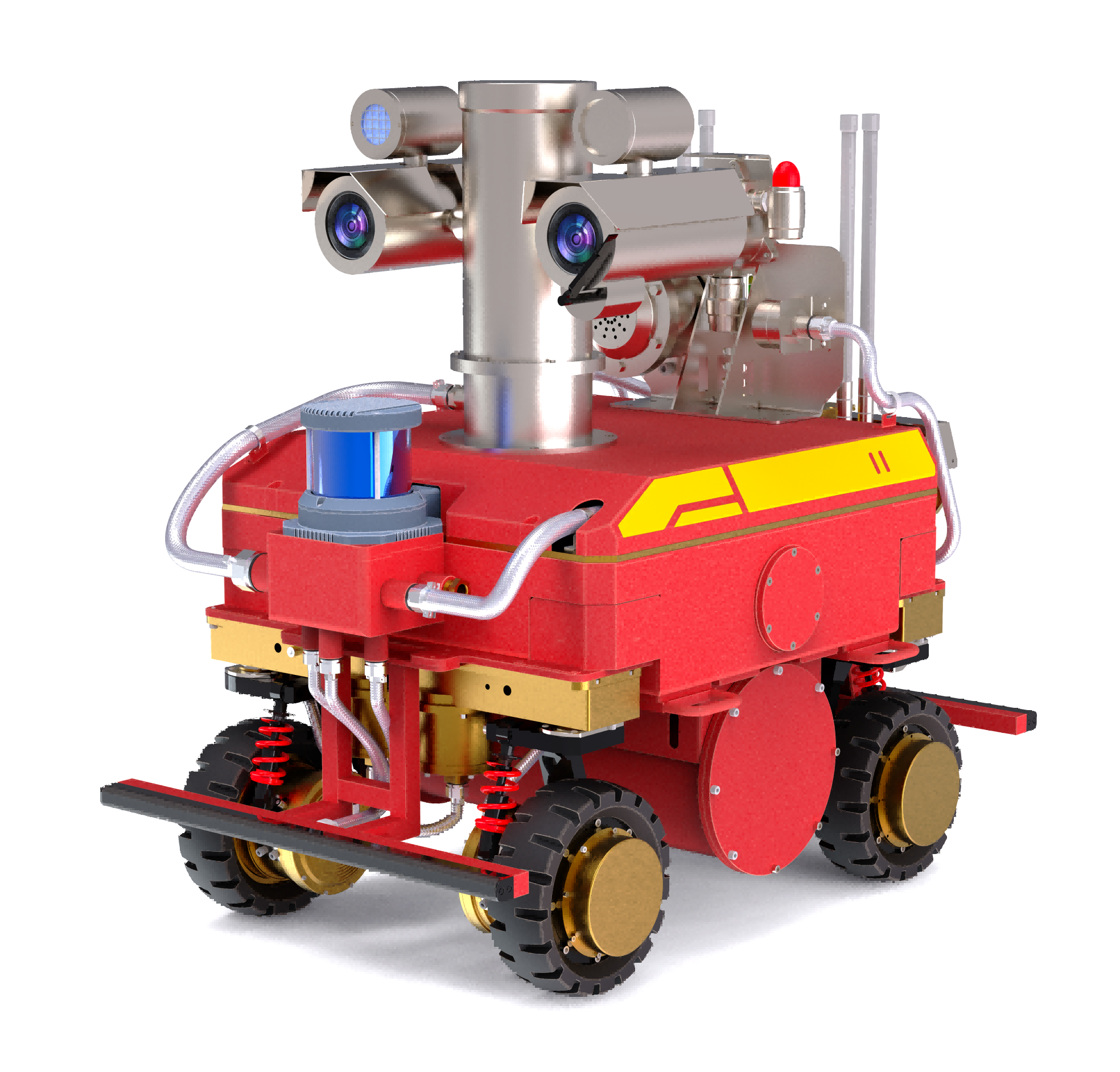

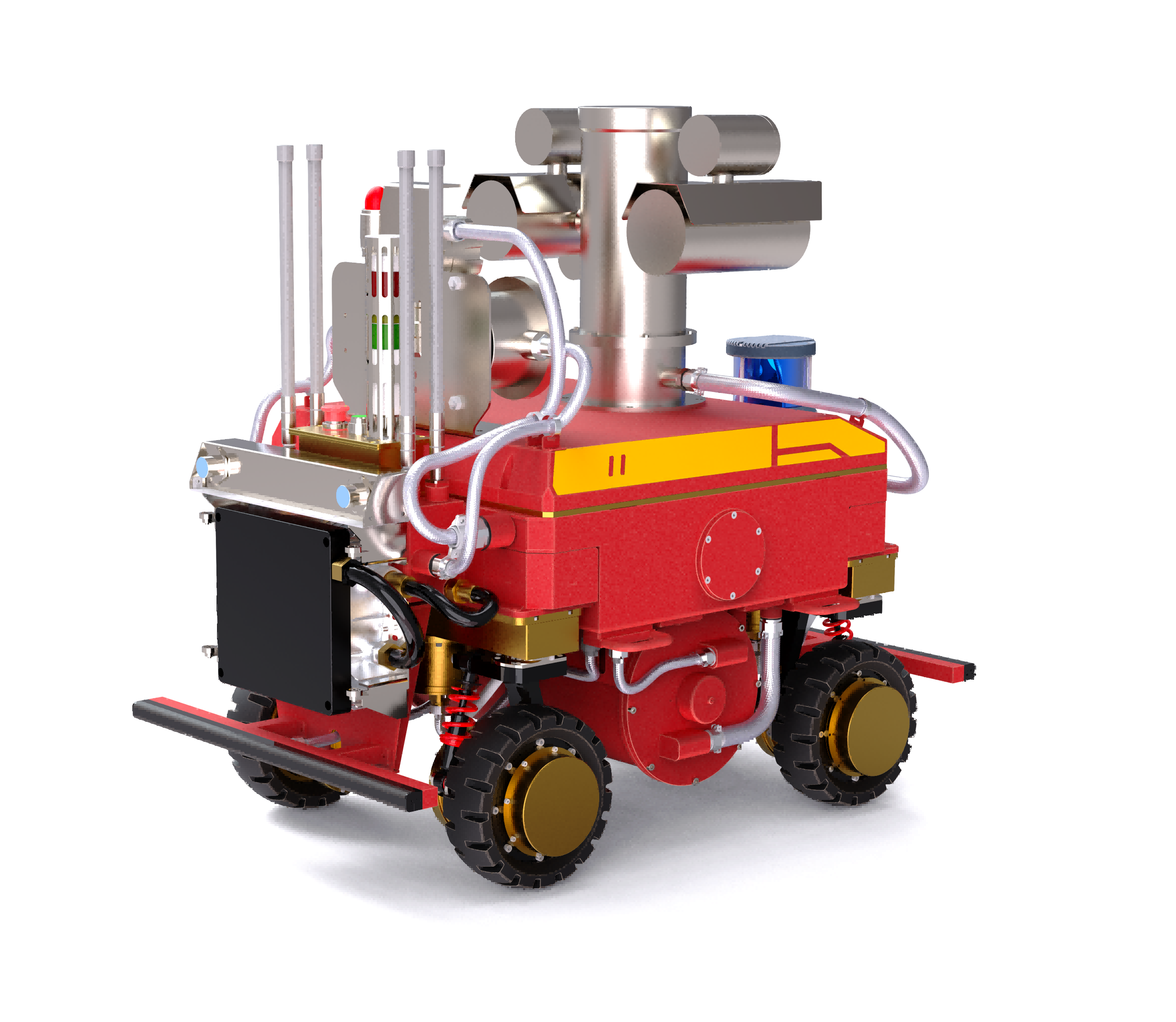

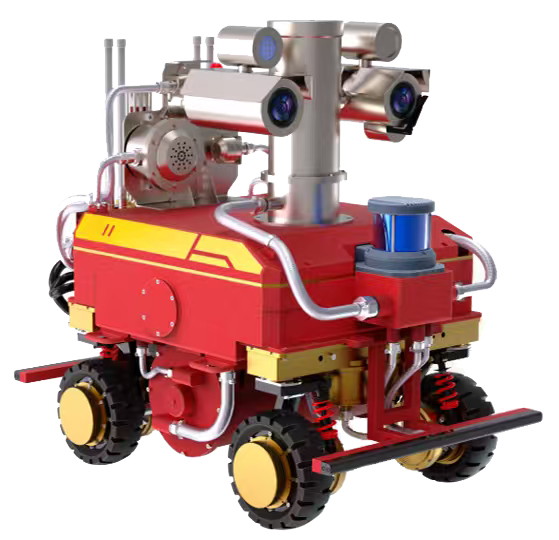

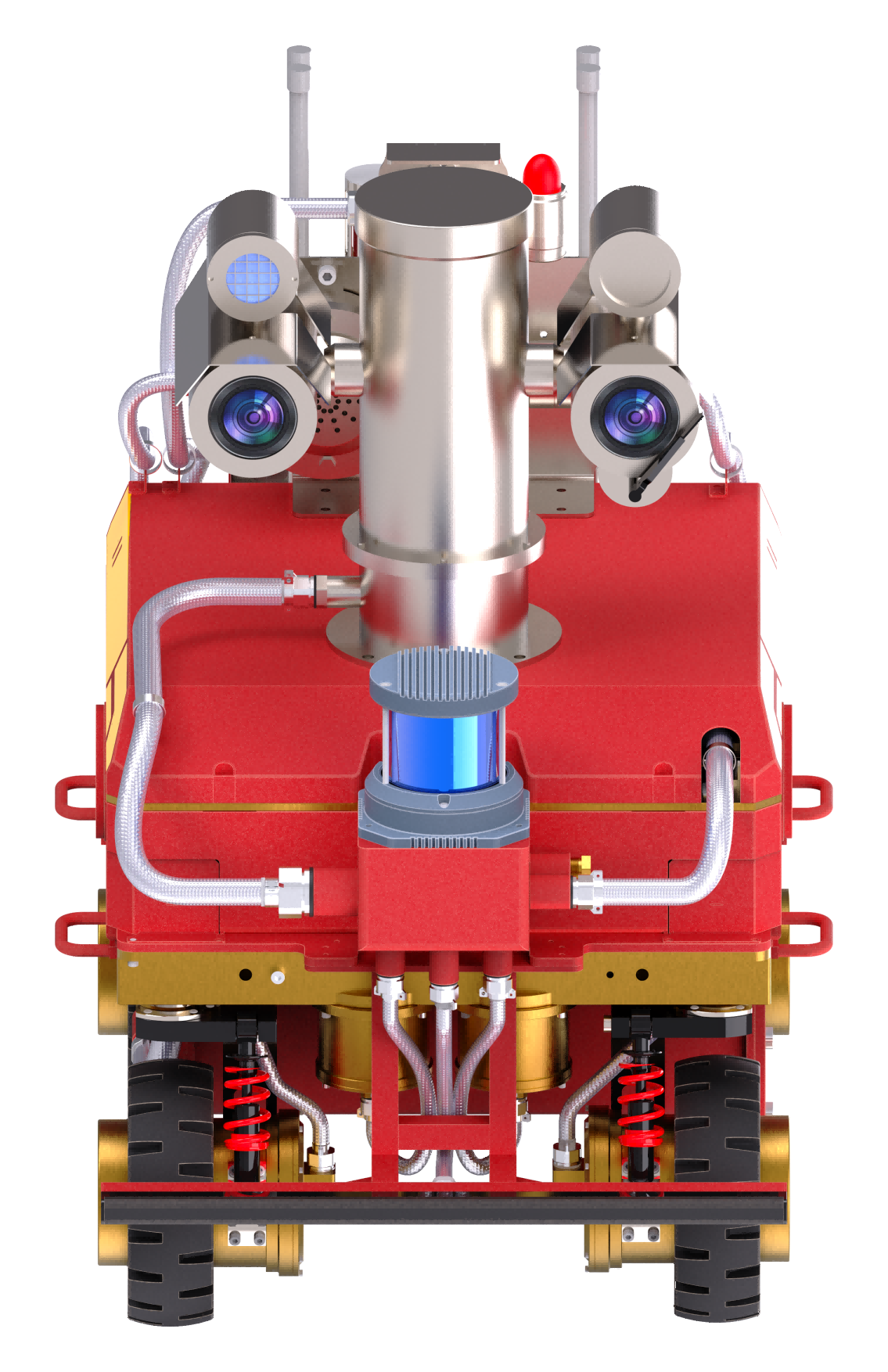

Explosion-Proof Inspection Robot

Product

An explosion-proof inspection robot is an intelligent patrol device specially designed for hazardous environments such as petrochemical plants, gas storage and transportation facilities, coal mines, and pharmaceutical workshops where flammable or explosive atmospheres may exist. Built with an explosion-proof-certified chassis and sensors, the robot can carry out patrol missions autonomously or under remote control. It collects real-time data—images, temperature, gas concentration, noise, etc.—and transmits the information to the control center via wireless networks. With functions like autonomous navigation, intelligent recognition, and early-warning alarms, the robot effectively replaces manual entry into high-risk zones, greatly improving inspection efficiency and safety while reducing accident hazards and labor costs.



Application Scenarios

Petrochemical industry, natural gas, power & electrical facilities, coal mines, firefighting



Technical Parameters

Basic Design | Basic Parameters

Remote-control distance: 50 m

Operating speed: 0–7.2 km/h

Full-load driving range: 35 km

Minimum turning radius: 0 m

Fording depth: 50 mm

Maximum climbing angle: 10°

Obstacle span (gap crossing): 150 mm

Obstacle height (step climbing): 50 mm

Protection rating: IP65

Drive motors: 4 × 600 W DC servo motors

Battery: 48 V / 50 Ah Li-ion with CAN bus

Charging time: 3–4 h

Charging methods: manual 48 V / 18 A charger or

48 V / 18 A wireless charging

External power supply: 24 V / 15 A & 12 V / 15 A

Braking method: electric motor brake

Parking method: motor parking brake
