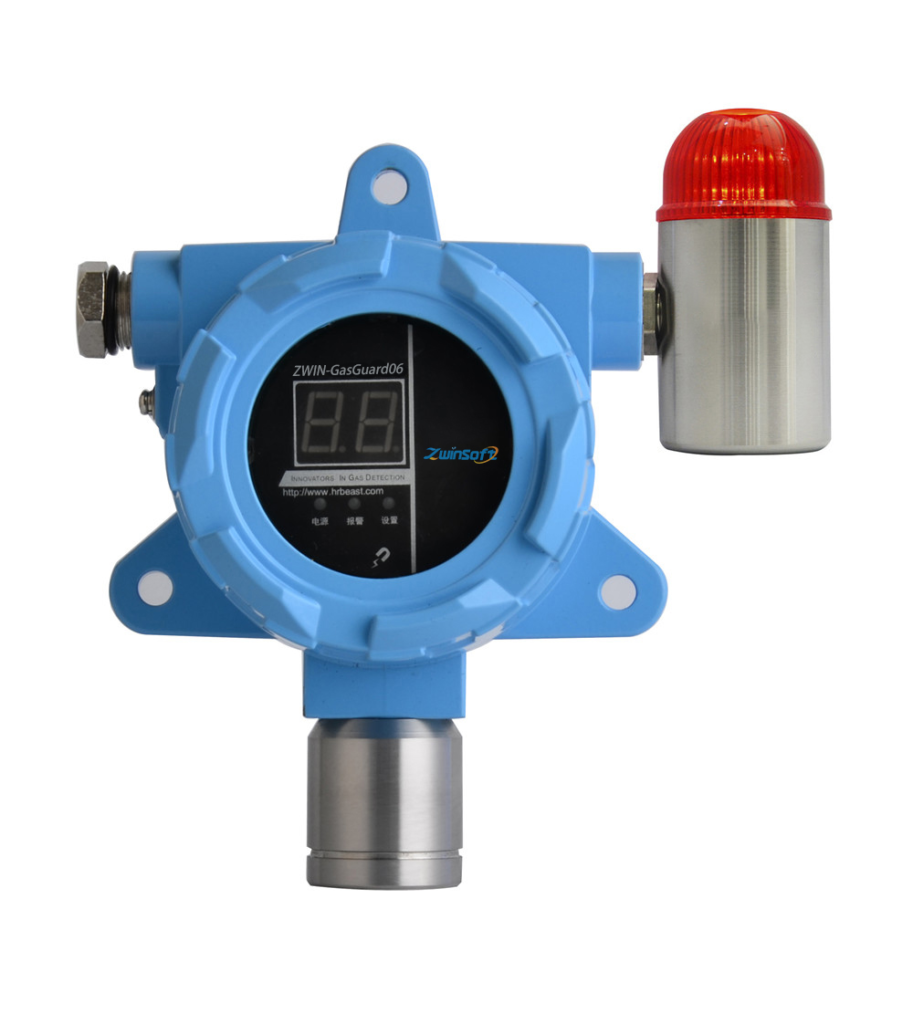

ZWIN-GasGuard06Online Gas Detector With Display

2023/08/22 Гасови Производ 845 0

ZWIN-GasGuard06 series gas detector is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first class brand sensors, and advanced micro-process technology, with data display, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations.

Features Product advantages Technical Specification

Monitor the specific gas concentration in environment or pipelineand alarm.
With self-calibration and zero calibration function,makes the detection more accurate and reliable.
With temperature compensation, this is able to realize gasconcentration compensation under conditions of different temperatures.
Infrared ray controller can remote control alarm point settings,zero calibration, and address modification.
Can output one or two on-off signals, can drive ventilator orsolenoid valve and other external devices.
Working Voltage：12-36V DC.

Employing world first class sensor.
Standard equipped with three-wire system 4-20mA analog output;relay output; RS485 output (optional)
Unique infrared ray control function, which can non-contacted control the device.
Being compatible with all kinds of controlled alarms, PLC, DCS andother control system, can be remote monitored.
Explosion-proof design, fast, reliable and stable.
Explosion-proof grade: Ex dⅡCT6.
With self-calibration function and three standard keys will be usedto realize on-site maintenance.
